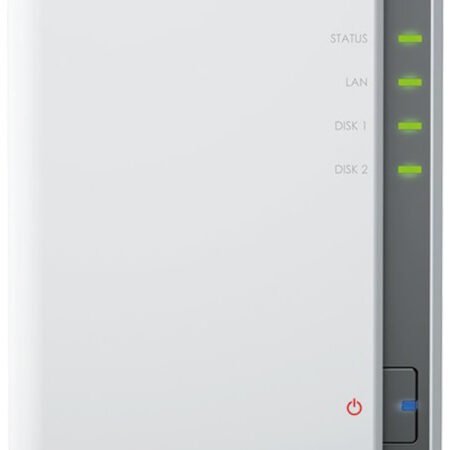

HDD NAS Storage Synology DS223j 2-Bay
29.005,64 рсд ~ sa PDV-omDodaj u korputvrdi disk NenaInterni 2x 3,5″ SATA 6Gb/sEkstern i1x GB LANDodatni portovi 2x USB-A 3.0 (host)RAID nivo 0/1/JBODCPU Realtek RTD1619B, 4x 1,70GHz (ARM Cortex-A55)RAM. 1GB DDR4 (zalemljen, 0 slobodnih slotova, nije proširivo)Fan 1x 92mm, 18,2dB(A)Potrošnja energije 16,31 W (u radu), 4 W (u mirovanju)Dimenzije 100x165x225.5mm (ŠxVxD)Težina880gposebnostii SCSI, 256bit AES enkripcija, iTunes server, DLNA server, FTP server, BitTorrent klijent, WebDAV, zaštita od krađe (Kensington Lock) -
-
STORAGE QNAP NAS TS-664-8G
133.856,00 рсд ~ sa PDV-omPročitajte jošQNAP TS-664-8G , Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz ,6 x 3.5-inch SATA 6Gb/s , 120W adapter, 100-240V
-
HDD NAS Storage Synology DS423 4-Bay
65.707,00 рсд ~ sa PDV-omDodaj u korpuBroj uvala Ulazi/Izlazi RačunarstvoCPU Procesor GeneraleBroj uvala Ulazi/Izlazi Form Factor -
STORAGE QNAP NAS TS-233
29.799,03 рсд ~ sa PDV-omDodaj u korpuTS-233
CPU ARM 4-core Cortex-A55 2.0GHz processor CPU Architecture 64-bit ARM Floating Point Unit Encryption Engine System Memory 2 GB on board (non-expandable) Note: Reserves some RAM for use as shared graphics memory.Maximum Memory 2 GB on board (non-expandable) Flash Memory 4 GB (Dual boot OS protection) Drive Bay 2 x 3.5-inch SATA 6Gb/s, 3Gb/s Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drivesHot-swappable Gigabit Ethernet Port (RJ45) 1 Wake on LAN (WOL) Jumbo Frame USB 2.0 port 2 USB 3.2 Gen 1 port 1 Form Factor Tower LED Indicators System Status, LAN, USB, HDD1~2 Buttons Power, Reset, USB Copy Dimensions (HxWxD) 7.43 × 3.55 × 6.15 inch Weight (Net) 2.45 lbs Weight (Gross) 4.3 lbs Operating Temperature 0 – 40 °C (32°F – 104°F) Storage Temperature -20 – 70°C (-4°F – 158°F) Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) Power Supply Unit 65W adapter (12VDC), 100-240VAC Power Consumption: HDD Sleep Mode 3.43 W Power Consumption: Operating Mode, Typical 10.81 W Tested with drives fully populated.Fan 1 x 80mm, 12VDC System Warning Buzzer Standard Warranty 2 Max. Number of Concurrent Connections (CIFS) – with Max. Memory 200 -
NAS RackStation Synology RS822RP+ 1U/4bay
185.549,12 рсд ~ sa PDV-omDodaj u korpuSpefikacija CPU
CPU model AMD Ryzen V1500B
CPU Quantity 1
CPU Core 4
CPU Architecture 64-bitni 64-bitni
CPU frekvencija 2,2 GHz
Hardware Encryption Engine Da
Memorija
Sistemska memorija 2 GB DDR4 ECC SODIMM
Memorijski modul unaprijed instaliran 2 GB (2 GB x 1)
Ukupni memorijski slotovi 2
Maksimalni kapacitet memorije 32 GB (16 GB x 2)
Skladištenje
Drive Bays 4
Maksimalno ležišta pogona sa jedinicom za proširenje 8 (RX418 x 1)
Kompatibilni tip diska
3,5″ SATA HDD
2,5″ SATA SSD
Hot Swapdisk Da
Eksterni portovi
RJ-45 1GbE LAN port 4
USB 3.2 Gen 1 Port* 2
Port za proširenje 1
Tip priključka za proširenje eSATA
PCIe
PCIe Expansion 1 x Gen3 x8 slot (x4 link)
Izgled
Form Factor (RU) 1U
Veličina (visina x širina x dubina) 44 mm x 480 mm x 518,6 mm
Težina 8,0 kg
Podrška za instalaciju u stalak* 19″ stalak sa 4 stupa (Synology Rail Kit – RKM114 / RKS-02 )
Beleška Komplet šina se prodaje zasebno
Ostalo
Sistemski ventilator 40 mm x 40 mm x 2 kom
Režim brzine ventilatora
Režim pune brzine
Cool Mode
Quiet Mode
Power Recovery Da
Nivo buke* 38,8 dB(A)
Planirano uključivanje / isključivanje Da
Wake on LAN / WAN Da
Jedinica napajanja / adapter 150 vati
Redundantno napajanje Da
AC ulazni napon napajanja 100 V do 240 V AC
Frekvencija snage 50/60 Hz, jednofazni
Potrošnja energije
47,69 W (Pristup)
16,7 W (Hibernacija HDD-a)
Britanska termalna jedinica
162,83 BTU/sat (pristup)
57,02 BTU/sat (hibernacija HDD-a)
Temperatura
Radna temperatura 0°C do 35°C (32°F do 95°F)
Temperatura skladištenja -20°C do 60°C (-5°F do 140°F)
Relativna vlažnost 5% do 95% RH 5% do 95% RH
Certifikat FCC, CE, BSMI, VCCI, RCM,UKCA,EAC,CCC, KC,UL
Životna sredina Usklađen sa RoHS
Sadržaj pakovanja
Glavna jedinica X 1
Paket dodatne opreme X 1
Kabl za napajanje naizmeničnom strujom X 2
Vodič za brzu instalaciju X 1 -
Synology VisualStation VS600HD
10.442,16 рсд ~ sa PDV-omDodaj u korpuHardware SpecificationsVideo OutputsVideo Outputs HDMI x 2 Supported Video Resolution - 4K (3840 x 2160), 30Hz
- 1080p (1920 x 1080), 60 Hz
Audio Input3.5 mm Stereo Audio Jack x 1 Audio Output3.5 mm Stereo Audio Jack x 1 RJ-45 1GbE LAN Port1 USB 3.0 Port2 AppearanceSize (Height x Width x Depth) 41.84 mm x 150 mm x 150 mm Weight 0.36 kg OthersPower Supply Unit / Adapter 36 W AC Input Power Voltage 100 V to 240 V AC Power Frequency 50/60 Hz, Single Phase Power Consumption 15.49 W (50ch full-load)
5.85 W (Power on Idle)TemperatureOperating Temperature -20°C to 40°C (-4°F to 104°F) Adapter Operating Temperature 0°C to 40°C (32°F to 104°F) Operating humidity 8% to 80% RH Storage Temperature -20°C to 60°C (-4°F to 140°F) Relative Humidity 5% to 95% RH Certification- FCC
- UKCA
- CE
- BSMI
- EAC
- RCM
- KC
- VCCI
NDAA complianceTAA complianceWarranty3 Years Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) EnvironmentRoHS Compliant Packaging Content- Main Unit X 1
- Quick Installation Guide X 1
- AC Power Adapter X 1
- RJ-45 LAN Cable X 1
- VESA mounting kit
-
HDD NAS Storage Synology DS124 1-Bay
23.467,14 рсд ~ sa PDV-omDodaj u korpuProcesor: Realtek RTD1619B Memorija: 1 GB Broj slotova za diskove: 1 Maksimalni kapacitet diskova: 108TB Hard disk: Podržava: 3.5″ SATA HDD 2.5″ SATA SSD LAN: 1 x RJ-45 1GbE port USB: 2 x USB-A 3.2 Gen 1 Softverske specifikacije: • Interni drajvovi: ○ Btrfs ○ ext4 • Eksterni drajvovi: ○ Btrfs ○ ext4 ○ ext3 ○ FAT ○ NTFS ○ HFS+ ○ exFAT • File Protocol: ○ SMB ○ AFP ○ NFS ○ FTP ○ WebDAV ○ Rsync Dimenzije: 166 x 71 x 224mm Masa: 0.7kg Boja: Crna -
NAS Synology RS422+ RackStation 4-bay
98.481,26 рсд ~ sa PDV-omDodaj u korpuHardware SpecificationsCPUCPU Model AMD Ryzen R1600 CPU Quantity 1 CPU Core 2 CPU Architecture 64-bit CPU Frequency 2.6 (base) / 3.1 (turbo) GHz Hardware Encryption Engine MemorySystem Memory 2 GB DDR4 ECC Notes Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. StorageDrive Bays 4 Drive Type (See all supported drives) - 3.5″ SATA HDD
- 2.5″ SATA SSD
Hot Swappable Drive* External PortsRJ-45 1GbE LAN Port 2 USB 3.2 Gen 1 Port* 1 Notes - This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
- The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIePCIe Expansion 1 x Gen3 x2 network upgrade slot AppearanceForm Factor (RU) 1U Size (Height x Width x Depth) 44 mm x 478 mm x 327.5 mm Weight 4.38 kg Rack Installation Support* Notes The rail kit is sold separately OthersSystem Fan 40 mm x 40 mm x 3 pcs Fan Speed Mode - Full-Speed Mode
- Cool Mode
- Quiet Mode
Power Recovery Noise Level* 28.5 dB(A) Scheduled Power On / Off Wake on LAN / WAN Power Supply Unit / Adapter 100 watts AC Input Power Voltage 100V to 240V AC Power Frequency 50/60 Hz, Single Phase Power Consumption 37.93 watts (Access)
13.43 watts (HDD Hibernation)British Thermal Unit 129.42 BTU/hr (Access)
45.83 BTU/hr (HDD Hibernation)Notes - For more information on how power consumption is measured, refer to this article.
- Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle stae. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
TemperatureOperating Temperature 0°C to 35°C (32°F to 95°F) Storage Temperature -20°C to 60°C (-5°F to 140°F) Relative Humidity 5% to 95% RH Certification- FCC
- CE
- BSMI
- VCCI
- RCM
- UKCA
- EAC
- CCC
- KC
- BIS
Warranty3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus Notes - The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
- Extended Warranty Plus is only available in Europe and North America. EW201/EW202 is only available in Asia, Africa, and Oceania. For exact availability information please visit their respective websites.
EnvironmentRoHS Compliant Packaging Content- Main Unit X 1
- Accessory Pack X 1
- AC Power Cord X 1
- Quick Installation Guide X 1
Optional Accessories- Enterprise Series 3.5″ SATA HDD: HAT5300 Series
- Plus Series 3.5″ SATA HDD: HAT3300 Series
- Enterprise Series 2.5″ SATA SSD: SAT5200 Series
- 10GbE Network Upgrade Module: E10G22-T1-Mini
- Rail Kit Sliding: RKS-02
- Rail Kit Mounted: RKM114*
Notes Certain items may not be available in your location. Please contact your local distributors for more information. DSM SpecificationsMaximum Single Volume Size 108 TB Maximum Internal Volume Number 64 SSD Read/Write Cache (Determining cache size) SSD TRIM Supported RAID Type - Synology Hybrid RAID
- Basic
- JBOD
- RAID 0
- RAID 1
- RAID 5
- RAID 6
- RAID 10
RAID Migration - Basic to RAID 1
- Basic to RAID 5
- RAID 1 to RAID 5
- RAID 5 to RAID 6
Volume Expansion with Larger HDDs - Synology Hybrid RAID
- RAID 1
- RAID 5
- RAID 6
- RAID 10
Volume Expansion by Adding a HDD - Synology Hybrid RAID
- JBOD
- RAID 5
Global Hot Spare Supported RAID Type - Synology Hybrid RAID
- RAID 1
- RAID 5
Notes - Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
- Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration.
Internal Drives - Btrfs
- ext4
External Drives - Btrfs
- ext4
- ext3
- FAT
- NTFS
- HFS+
- exFAT
File Protocol - SMB
- AFP
- NFS
- FTP
- WebDAV
- Rsync
Maximum Concurrent SMB/AFP/FTP Connections 500 Windows Access Control List (ACL) Integration NFS Kerberos Authentication Notes The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed. Maximum Local User Accounts 2,048 Maximum Local Groups 256 Maximum Shared Folder 512 Maximum Shared Folder Sync Tasks 8 Maximum Hybrid Share Folders 10 Folder and Package Backup Entire System Backup Notes Full-system backup requires DSM 7.2 or later. Synology High Availability Syslog Events per Second 800 Supported Protocols SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV Supported Browsers - Chrome
- Firefox
- Edge
- Safari
Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 Notes For an updated list of supported browser versions, check the DSM Technical Specifications. Add-on Packages view the complete package listSuggested Users 100 Notes - Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds.
- Models with expandable memory are tested with their maximum supported memory.
Download StationMaximum Concurrent Download Tasks 80 Maximum iSCSI Target Number 128 Maximum LUN 256 LUN Clone/Snapshot, Windows ODX DLNA Compliance Facial Recognition Maximum Snapshots per Shared Folder 1,024 Maximum of System Snapshots 65,536 Default Licenses 2 (Additional cameras require purchase of licenses) Suggested Maximum IP Cameras and Total FPS (H.264) - 1080p: 40 channels, 800 FPS
- 3M: 35 channels, 350 FPS
- 5M: 28 channels, 280 FPS
- 4K: 17 channels, 170 FPS
Suggested Maximum IP Cameras and Total FPS (H.265) - 1080p: 40 channels, 1200 FPS
- 3M: 40 channels, 600 FPS
- 5M: 40 channels, 480 FPS
- 4K: 20 channels, 200 FPS
Notes - Performance figures are obtained from testing conducted with the device fully populated with drives, with their default memory configuration, and under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads.
- Use NVR Selector to quickly find a suitable model based on your requirements.
- The number of streams that can be viewed simultaneously is twice the suggested maximum number of cameras. For example, if the suggested maximum number of cameras for a model is 10 under H.264, 1080p, the model can support up to 20 streams of the same specification at the same time.
Recommended Number of Concurrent Sync Clients 350 (the number of connections that can be maintained when the recommended number of hosted files was reached) Recommended Number of Hosted Files 5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above) Notes - Exceeding the recommended numbers above will not block application operations, but may result in longer response time.
- Utilizing SSD cache can significantly improve performance.
- Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Suggested Users 3,000 Notes - Suggested users is derived from testing in an environment with 60% idle users (each logging in and viewing documents) and 40% active users (each executing random actions at intervals of 20 to 40 seconds) operating within documents, each document having 30 users. Learn more
- Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Maximum Connections 40 -
STORAGE QNAP NAS TS-133
24.585,00 рсд ~ sa PDV-omDodaj u korpuBrand QNAP Dimenzije proizvoda 50 x 50 x 28 cm; 608 grama Broj modela artikla 4711103080603 Proizvođač QNAP Boja Bela Tip procesora Nijedna Tip memorije računara DIMM Brzina memorije 1785 Veličina tvrdog diska 1.00 Interfejs tvrdog diska Gigabitni Ethernet Interfejs grafičke kartice PCI-Express x16 Broj USB 2.0 portova 1 Da li su baterije uključene Ne Težina artikla 608 g -
STORAGE QNAP NAS TS-264-8G 2-Bay
67.643,99 рсд ~ sa PDV-omDodaj u korpuSpecifikacije
Procesor: Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz Memorija: 8 GB on board (non-expandable) Maksimum memorije: 8 GB Flash memorija: 4GB (Dual boot OS protection) Hard disk 2×3.5″ SATA 6Gb/s Lan: 2×2.5GbE (2.5G/1G/100M) Usb: 2 x USB 2.0 , 2 x Type-A USB 3.2 Gen 2 Napajanje: 65W Fizičke karakteristike
Dimenzije 168 × 105 × 226 mm Masa 1.55 kg -
HDD NAS Storage Synology DS1525+ 5-Bay
112.354,34 рсд ~ sa PDV-omDodaj u korpuHardware SpecificationsCPUCPU Model AMD Ryzen V1500B CPU Quantity 1 CPU Core 4 CPU Architecture 64-bit CPU Frequency 2.2 GHz Hardware Encryption Engine MemorySystem Memory 8 GB DDR4 ECC SODIMM Memory Module Pre-installed 8 GB (8 GB x 1) Total Memory Slots 2 Maximum Memory Capacity 32 GB (16 GB x 2) Notes - Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
- Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
- For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.
StorageDrive Bays 5 Maximum Drive Bays with Expansion Unit 15 (DX525 x 2) M.2 Drive Slots 2 (NVMe) Drive Type (See all supported drives) - 3.5″ SATA HDD
- 2.5″ SATA SSD
- M.2 2280 NVMe SSD
Hot Swappable Drive* Notes - The hot swappable drive feature is not supported by M.2 SSD slots.
- Synology only guarantees full functionality, reliability, and performance for compatible drives. Please consult our compatibility list before purchasing hard drives. For more details, please refer to this article.
External PortsRJ-45 2.5GbE LAN Port 2 USB 3.2 Gen 1 Port 2 Expansion Port 2 Expansion Port Type USB Type-C PCIePCIe Expansion 1 x Gen3 x2 network upgrade slot AppearanceSize (Height x Width x Depth) 166 mm x 230 mm x 223 mm Weight 2.67 kg OthersSystem Fan 92 mm x 92 mm x 2 pcs Fan Speed Mode - Full-Speed Mode
- Cool Mode
- Quiet Mode
Brightness Adjustable Front LED Indicators Power Recovery Noise Level* 22.60 dB(A) Scheduled Power On / Off Wake on LAN / WAN Power Supply Unit / Adapter 120 watts AC Input Power Voltage 100V to 240V AC Power Frequency 50/60 Hz, Single Phase Power Consumption 44.56 watts (Access)
13.63 watts (HDD Hibernation)British Thermal Unit 151.95 BTU/hr (Access)
46.48 BTU/hr (HDD Hibernation)Notes - For more information on how power consumption is measured, refer to this article.
- Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
TemperatureOperating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -20°C to 60°C (-5°F to 140°F) Operating Humidity 8% to 80% RH Storage Humidity 5% to 95% RH Certification- FCC
- CE
- BSMI
- VCCI
- RCM
- UKCA
- EAC
- CCC
- KC
- BIS
Warranty3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus Notes - The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
- Extended Warranty Plus is only available in Europe and North America. EW201/EW202 is only available in Asia, Africa, and Oceania. For exact availability information please visit their respective websites.
EnvironmentRoHS Compliant Packaging Content- Main Unit X 1
- Accessory Pack X 1
- AC Power Adapter X 1
- AC Power Cord X 1
- RJ-45 LAN Cable X 2
Optional Accessories- DDR4 ECC SODIMM: D4ES03-8G/D4ES03-16G
- Expansion Units: DX525
- Enterprise Series 3.5″ SATA HDD: HAT5300 Series
- Plus Series 3.5″ SATA HDD: HAT3300 Series
- Enterprise Series 2.5″ SATA SSD: SAT5200 Series
- Enterprise Series M.2 2280 NVMe SSD: SNV3400 & SNV5400 Series
- 10GbE Network Upgrade Module: E10G22-T1-Mini
-
NAS RackStation Synology RS822+ 1U/4bay
145.868,92 рсд ~ sa PDV-omDodaj u korpuHardware SpecsHardware SpecificationsRS822RP+RS822+CPU CPU Model AMD Ryzen V1500B AMD Ryzen V1500B CPU Quantity 1 1 CPU Core 4 4 CPU Architecture 64-bit 64-bit CPU Frequency 2.2 GHz 2.2 GHz Hardware Encryption Engine Memory System Memory 2 GB DDR4 ECC SODIMM 2 GB DDR4 ECC SODIMM Memory Module Pre-installed 2 GB (2 GB x 1) 2 GB (2 GB x 1) Total Memory Slots 2 2 Maximum Memory Capacity 32 GB (16 GB x 2) 32 GB (16 GB x 2) Notes - Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
- Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
- For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage Drive Bays 4 4 Maximum Drive Bays with Expansion Unit 8 (RX418 x 1) 8 (RX418 x 1) Drive Type (See all supported drives) - 3.5″ SATA HDD
- 2.5″ SATA SSD
- 3.5″ SATA HDD
- 2.5″ SATA SSD
Hot Swappable Drive* Notes The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit. (Learn more) External Ports RJ-45 1GbE LAN Port 4 4 USB 3.2 Gen 1 Port* 2 2 Expansion Port 1 1 Expansion Port Type eSATA eSATA Notes - This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
- The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe PCIe Expansion 1 x Gen3 x8 slot (x4 link) 1 x Gen3 x8 slot (x4 link) Appearance Form Factor (RU) 1U 1U Size (Height x Width x Depth) 44 mm x 480 mm x 518.6 mm 44 mm x 480 mm x 492.6 mm Weight 8.0 kg 6.4 kg Rack Installation Support* 4-post 19″ rack (Synology Rail Kit – RKM114/RKS-02) 4-post 19″ rack (Synology Rail Kit – RKM114/RKS-02) Notes The rail kit is sold separately Others System Fan 40 mm x 40 mm x 2 pcs 40 mm x 40 mm x 3 pcs Fan Speed Mode - Full-Speed Mode
- Cool Mode
- Quiet Mode
- Full-Speed Mode
- Cool Mode
- Quiet Mode
Power Recovery Noise Level* 38.8 dB(A) 27.4 dB(A) Scheduled Power On / Off Wake on LAN / WAN Power Supply Unit / Adapter 150 watts 150 watts Redundant Power Supply – AC Input Power Voltage 100 V to 240 V AC 100 V to 240 V AC Power Frequency 50/60 Hz, Single Phase 50/60 Hz, Single Phase Power Consumption 47.69 watts (Access)
16.7 watts (HDD Hibernation)47.69 watts (Access)
16.7 watts (HDD Hibernation)British Thermal Unit 162.83 BTU/hr (Access)
57.02 BTU/hr (HDD Hibernation)162.83 BTU/hr (Access)
57.02 BTU/hr (HDD Hibernation)Notes - For more information on how power consumption is measured, refer to this article.
- Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle stae. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature Operating Temperature 0°C to 35°C (32°F to 95°F) 0°C to 35°C (32°F to 95°F) Storage Temperature -20°C to 60°C (-5°F to 140°F) -20°C to 60°C (-5°F to 140°F) Relative Humidity 5% to 95% RH 5% to 95% RH Certification - FCC
- CE
- BSMI
- VCCI
- RCM
- UKCA
- EAC
- CCC
- KC
- BIS
- UL
- FCC
- CE
- BSMI
- VCCI
- RCM
- UKCA
- EAC
- CCC
- KC
- UL
Warranty 3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus 3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus Notes - The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
- Extended Warranty Plus is only available in Europe and North America. EW201/EW202 is only available in Asia, Africa, and Oceania. For exact availability information please visit their respective websites.
Environment RoHS Compliant RoHS Compliant Packaging Content - Main Unit X 1
- Accessory Pack X 1
- AC Power Cord X 2
- Quick Installation Guide X 1
- Main Unit X 1
- Accessory Pack X 1
- AC Power Cord X 1
- Quick Installation Guide X 1
Optional Accessories - DDR4 ECC SODIMM: D4ES02-4G/D4ES02-8G/D4ES01-16G
- Expansion Units: RX418
- Enterprise Series 3.5″ SATA HDD: HAT5300 Series
- Plus Series 3.5″ SATA HDD: HAT3300 Series
- Enterprise Series 2.5″ SATA SSD: SAT5200 Series
- M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1
- M.2 SSD Adapter Card: M2D20/M2D18
- 25GbE Network Interface Card: E25G30-F2
- 10GbE Network Interface Card: E10G30-F2/E10G30-T2/E10G18-T1
- Rail Kit Sliding: RKS-02
- Rail Kit Mounted: RKM114*
- DDR4 ECC SODIMM: D4ES02-4G/D4ES02-8G/D4ES01-16G
- Expansion Units: RX418
- Enterprise Series 3.5″ SATA HDD: HAT5300 Series
- Plus Series 3.5″ SATA HDD: HAT3300 Series
- Enterprise Series 2.5″ SATA SSD: SAT5200 Series
- M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1
- M.2 SSD Adapter Card: M2D20/M2D18
- 25GbE Network Interface Card: E25G30-F2
- 10GbE Network Interface Card: E10G30-F2/E10G30-T2/E10G18-T1
- Rail Kit Sliding: RKS-02
- Rail Kit Mounted: RKM114*
Notes - Certain items may not be available in your location. Please contact your local distributors for more information.
- Upgrade to DSM 7.2-64551 or later before installing the M2D18.
- All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
Software SpecsDSM SpecificationsRS822RP+RS822+Storage Management Maximum Single Volume Size 108 TB 108 TB Maximum Internal Volume Number 64 64 SSD Read/Write Cache (Determining cache size) SSD TRIM Supported RAID Type - Synology Hybrid RAID
- Basic
- JBOD
- RAID 0
- RAID 1
- RAID 5
- RAID 6
- RAID 10
- Synology Hybrid RAID
- Basic
- JBOD
- RAID 0
- RAID 1
- RAID 5
- RAID 6
- RAID 10
RAID Migration - Basic to RAID 1
- Basic to RAID 5
- RAID 1 to RAID 5
- RAID 5 to RAID 6
- Basic to RAID 1
- Basic to RAID 5
- RAID 1 to RAID 5
- RAID 5 to RAID 6
Volume Expansion with Larger HDDs - Synology Hybrid RAID
- RAID 1
- RAID 5
- RAID 6
- RAID 10
- Synology Hybrid RAID
- RAID 1
- RAID 5
- RAID 6
- RAID 10
Volume Expansion by Adding a HDD - Synology Hybrid RAID
- JBOD
- RAID 5
- RAID 6 (with Expansion Unit)
- Synology Hybrid RAID
- JBOD
- RAID 5
- RAID 6 (with Expansion Unit)
Global Hot Spare Supported RAID Type - Synology Hybrid RAID
- RAID 1
- RAID 5
- RAID 6 (with Expansion Unit)
- RAID 10 (with Expansion Unit)
- Synology Hybrid RAID
- RAID 1
- RAID 5
- RAID 6 (with Expansion Unit)
- RAID 10 (with Expansion Unit)
Notes - Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
- Each internal volume (may consist of multiple drives) is expandable up to 108TB.
File System Internal Drives - Btrfs
- ext4
- Btrfs
- ext4
External Drives - Btrfs
- ext4
- ext3
- FAT
- NTFS
- HFS+
- exFAT
- Btrfs
- ext4
- ext3
- FAT
- NTFS
- HFS+
- exFAT
File Services File Protocol - SMB
- AFP
- NFS
- FTP
- WebDAV
- Rsync
- SMB
- AFP
- NFS
- FTP
- WebDAV
- Rsync
Maximum Concurrent SMB/AFP/FTP Connections 500 500 Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion) 2,000 2,000 Windows Access Control List (ACL) Integration NFS Kerberos Authentication Notes - Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM.
- The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared Folder Maximum Local User Accounts 2,048 2,048 Maximum Local Groups 256 256 Maximum Shared Folder 512 512 Maximum Shared Folder Sync Tasks 8 8 Hybrid Share Maximum Hybrid Share Folders 10 10 Hyper Backup Folder and Package Backup Entire System Backup Notes Full-system backup requires DSM 7.2 or later. High Availability Synology High Availability Log Center Syslog Events per Second 800 800 Virtualization VMware ESXi 6.5 and VAAI Windows Server 2016 Windows Server 2022 Citrix Ready OpenStack General Specifications Supported Protocols SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV Supported Browsers - Chrome
- Firefox
- Edge
- Safari
- Chrome
- Firefox
- Edge
- Safari
Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 Notes For an updated list of supported browser versions, check the DSM Technical Specifications. -
HDD NAS Storage Synology DS1621+ 6-Bay
140.878,10 рсд ~ sa PDV-omDodaj u korpuFeature Storage System Type NAS Form Factor Tower Device Location External Built-in Devices LED Indicator Networked Storage Device Features AES Encryption Expansion Slot M.2 (x2)
PCIe 3.0 (x8)Processor CPU AMD Ryzen Embedded V1500B Internal Clock Rate 2.2 GHz CPU Installed Quantity 1 Memory RAM 4 GB DDR4 SDRAM SODIMM 260-pin Maximum Memory Capacity 32 GB Memory Slot Total Quantity 2 Networking Specifications Network/Transport Protocol iSCSI
SMB
NFS
FTP
HTTP
CIFS
AFP
HTTPS
SNMP
WebDAV
LDAPData Link Protocol Supports Gigabit Ethernet/Fast Ethernet/Ethernet Storage Provides Data Channel SATA Provides Internal Drive Bay Dimension 2.5″/3.5″ Supports Number of Devices 16 Supports RAID Level JBOD
Level 0
Level 1
Level 5
Level 6
Level 10Number of 3.5-inch Hot-Swap Drive Bays 6 Interface Interface Provided LAN: 4x Gigabit Ethernet (RJ-45)
USB 3.0: 3x
e-SATA: 2xSystem Fans Fans Quantity 2 x 92mm Miscellaneous Mounting Capability Desktop External Color Black Included Accessories Quick Start Guide Cable Included 2 x Ethernet cables
Power CordCertifications EAC, VCCI, CCC, RCM, KC, FCC, CE, BSMI, RoHS Power Power Supply Internal
AC 100-240 VMaximum Output Power 250 W Power Consumption Operational 51.22 W Power Consumption Stand By/Sleep 25.27 W Environment Maximum Operating Ambient Temperature 40 °C Minimum Operating Ambient Temperature 0 °C Maximum Operating Humidity 95 % Minimum Operating Humidity 5 % Dimensions & Weight Device Depth (mm) 243 mm Height (mm) 166 mm Width (mm) 282 mm Nominal Weight 5.1 kg Warranty Warranty Products Returnable Yes Warranty validation Criteria Serial Number Logistic Pack Weight Brutto (kg) 5.1 kg Pack Weight Netto (kg) 5.1 kg Pieces in pack 1 Box Weight Brutto (kg) 5.1 kg Retail Packaging Net Weight Carton 1 kg Retail Packaging Net Weight Plastic 3 kg Packs in Box 1 Package Type Box EAN Code 4711174723775 -
STORAGE QNAP NAS TS-464-8G 4-Bay
89.189,81 рсд ~ sa PDV-omDodaj u korpuBrand QNAP Boja crna Veličina 4 Bay Materijal Metal Kompatibilni uređaji Desktop -
NAS DiskStation Synology DS2422+ 12bay
290.773,93 рсд ~ sa PDV-omDodaj u korpuSpefikacija Procesor
Model procesora AMD Ryzen V1500B
Količina CPU-a 1
Jezgro procesora 4
Arhitektura procesora 64-bitni
Frekvencija procesora 2,2 GHz
Mehanizam za hardversko šifriranje da
Memorija
Sistemska memorija 4 GB DDR4 ECC SODIMM
Memorijski modul je unaprijed instaliran 4 GB (4 GB x 1)
Ukupan broj memorijskih slotova 2
Maksimalni kapacitet memorije 32 GB (16 GB x 2)
Beleške
Synology zadržava pravo zamjene memorijskih modula istom ili višom frekvencijom na osnovu životnog ciklusa proizvoda dobavljača. Budite uvjereni da su kompatibilnost i stabilnost strogo provjerene istim mjerilom kako bi se osigurale identične performanse.
Molimo odaberite Synology memorijske module za optimalnu kompatibilnost i pouzdanost. Synology neće pružiti potpunu garanciju za proizvod ili tehničku podršku ako se za proširenje memorije koriste memorijski moduli koji nisu Synologyjevi.
Za konfiguracije memorije s više modula, svi moduli moraju biti identični i imati isti broj modela. Proverite priručnik za proizvod vašeg Synology proizvoda za preporučene konfiguracije memorije.
Skladištenje
Ležišta za diskove 12
Maksimalan broj mjesta za diskove s jedinicom za proširenje 24 (DX1222 x 1)
Tip diska (Pogledajte sve podržane diskove)
3,5″ SATA tvrdi disk
2,5″ SATA tvrdi disk
2,5″ SATA SSD
Disk koji se može mijenjati tokom rada* da
Beleške Synology garantuje punu funkcionalnost, pouzdanost i performanse samo za Synology diskove navedene na listi kompatibilnosti . Korištenje neprovjerenih komponenti može ograničiti određene funkcionalnosti i rezultirati gubitkom podataka i nestabilnošću sistema.
Spoljnji portovi
RJ-45 1GbE LAN priključak 4
USB 3.2 Gen 1 port 2
Port za proširenje 1
Tip porta za proširenje Mini-SAS HD
Bilješke MTU vrijednost 1GbE LAN porta ima ograničenje od 1500.
PCIe
PCIe proširenje 1 x Gen3 x8 slot (x4 veza)
Izgled
Veličina (Visina x Širina x Dubina) 270 mm x 300 mm x 340 mm
Težina 9,5 kg
Ostalo
Ventilator sistema 120 mm x 120 mm x 2 kom
Režim brzine ventilatora
Režim pune brzine
Hlađenje
Tihi način rada
Jednostavna zamena sistemskog ventilatora da
Oporavak energije da
Nivo buke* 25 dB(A)
Planirano uključivanje/isključivanje da
Buđenje putem LAN/WAN mreže da
Napajanje / adapter 550 vati
Ulazni napon izmenične struje 100V do 240V AC
Frekvencija napajanja 50/60 Hz, jednofazni
Potrošnja energije* 73,11 vati (pristup)
32,12 vati (hibernacija tvrdog diska)
Britanska termalna jedinica 249,63 BTU/h (pristup)
109,67 BTU/h (hibernacija tvrdog diska)
Beleške
Potrošnja energije se mjeri kada je računar potpuno napunjen Western Digital 1TB WD10EFRX tvrdim diskom/diskovima.
Okruženje za testiranje nivoa buke: Potpuno opremljeno Seagate 2TB ST2000VN000 tvrdim diskom/diskovima u stanju mirovanja. Dva GRAS mikrofona tipa 40AE, svaki postavljen na udaljenosti od 1 metra od Synology NAS-a sprijeda i straga. Pozadinska buka: 16,49-17,51 dB(A); Temperatura: 24,25-25,75˚C; Vlažnost: 58,2-61,8%
Temperatura
Radna temperatura 0°C do 40°C (32°F do 104°F)
Temperatura skladištenja -20°C do 60°C (-5°F do 140°F)
Radna vlažnost 8% do 80% relativne vlažnosti
Vlažnost pri skladištenju 5% do 95% relativne vlažnosti
Certifikacija
FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
Kansas City
BIS
UL
Okolina
U skladu sa RoHS direktivom
Sadržaj pakovanja
Glavna jedinica x 1
Paket dodatne opreme x 1
Kabl za napajanje izmjeničnom strujom x 1
RJ-45 LAN kabel x 2
Vodič za brzu instalaciju x 1Dodatna oprema
DDR4 ECC SODIMM: D4ES02-4G / D4ES02-8G / D4ES01-16G
Jedinice za proširenje: DX1222
Enterprise serija 3,5″ SATA HDD: HAT5300 serija
Plus serija 3,5″ SATA HDD: HAT3300 serija
2,5-inčni SATA SSD Enterprise serije: SAT5200 serija
Kombinovana M.2 SSD i 10GbE adapter kartica: E10M20-T1
M.2 SSD adapterska kartica: M2D20
25GbE mrežna kartica: E25G30-F2
10GbE mrežna kartica: E10G30-F2 / E10G30-T2 / E10G18-T1
