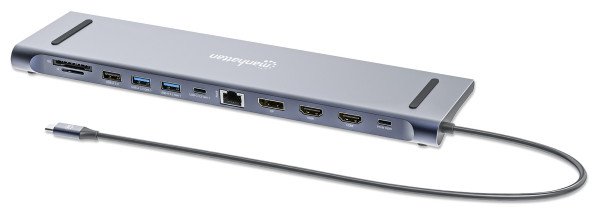

Docking station Manhattan 12in1 USB-C 100W-2xHDMI/DP/GLAN/3xUSB/USB-C 190305

• Connections
• One USB-C 24-pin, male
• Two HDMI 19-pin, female
• One DisplayPort 20-pin, female
• One 10/100/1000 Mbps RJ45, female
• Two USB-A 9-pin, female
• One USB-A 4-pin, female
• One SD memory slot
• One microSD memory slot
• One 3.5 mm stereo, female
• One USB-C 24-pin, data only, female
• One USB-C 24-pin, Power Delivery, female

  Physical

• Aluminum housing
• Dimensions (L x W x H): 284 x 80 x 17 mm (11.18 x 3.15 x 0.67 in.)
• Net weight: 300 g (0.66 lbs.)
• Gross weight: 400 g (0.88 lbs.)
• Cable length: 0.5 m (24 in.)
• Cable diameter: 34 AWG

• General
• Video:
  – Available resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K@30Hz, 4K@60Hz
  – If one or two video ports are used at a time, the max. resolution per display is 4K (3840 x 2160 pixels) at 60 Hz
  – If three video ports are used at a time, the max. resolution per display is 4K (3840 x 2160 pixels) at 30 Hz
• USB-A port data transfer speed on USB 3.2 Gen 1 ports: 5 Gbps
• USB-A port data transfer speed on USB 2.0 port: 480 Mbps
• USB-C port data transfer speed: 5 Gbps
• Bus-powered operation (except charging functions)
• USB-A charging on USB 3.2 Gen 1 ports: 4.5 W (5.0 V at 0.9 A) max.
• USB-A charging on USB 2.0 port: 2.5 W (5.0 V at 0.5 A) max.
• USB-C PD charging port: 100.0 W (20.0 V at 5.0 A) max.
  – Voltage/current settings (maximum):
  – 5.0 V / 5.0 A
  – 9.0 V / 5.0 A
  – 12.0 V / 5.0 A
  – 15.0 V / 5.0 A
  – 19.0 V / 5.0 A
  – 20.0 V / 5.0 A

  Operating Environment

• Operation temperature: 0 – 60°C (32 – 140°F)
• Storage temperature: -10 – 80°C (14 – 176°F)
• Humidity (noncondensing): 5 – 90% RH
